Building and Structures C Z Purlin Machine
|Payment Type:||L/C,T/T,D/P,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||China|
|Supply Ability:||30 sets/month|
Model No.: ZT-005-118
Building and Structures Light Weight C Z Purlin Machine:
Building and Structures Light Weight C Z Purlin Machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z purlin roll forming machine, c z roll forming machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers.
The size we can do:
The Parameters of Building and Structures Light Weight C Z Purlin Machine:

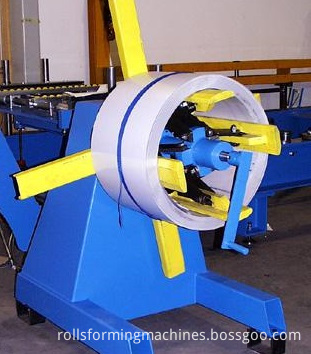

Name: Manual un-coiler System
Specification: Loading capacity: 5T; Uncoiling width: 500mm ;Inner diameter: 450-550mm
Name: Entry Beach
Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

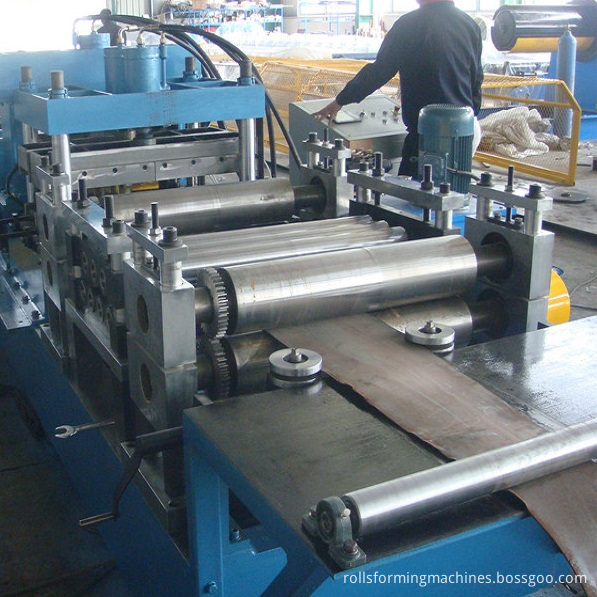

Name: Main Roll Forming System
Specification: 1)Number of forming steps:12stations; 2)Shafe material:45# steel Outer diameter:80mm ;3). Roller Material:Cr12MoV ;4).Transport: chain ;5).Forming speed:5-12m/min ;6).Motor:15kw ;7).Voltage:380v,50Hz,3 phase ; 9)Frame : middle plate welded ;10)Dimensions:12000mm*1800mm*1600mm ;11)Weight of machine: about 9ton
Name: Shearing Mechanism (include cutting tools, hydraulic tank, cutter machine)
Specification:1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched; 2)Power Supply : hydraulic power; 3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch
Name: Hydraulic Station
Specification:1)Hydraulic motor Power: 5.5kw ;2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )
Name: Electric Control System
Specification;1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime. 2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Specificatio:One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
1. Installation and training :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service :
a.One year guarantee.b.24 hours technical support by email or calling
c.If there is any problem be found of machine , we will repair roll forming machine for free in one year.
Pictures of shipping machine:
