Professional 1KW Digital TV Transmitter

Professional 1KW Digital TV Transmitter

    Packaging: Carton Wooden Box
    Productivity: 2000 units
    Brand: yxht
    Transportation: Ocean,Air,Express,Express
    Place of Origin: China
    Certificate: iso9001
    HS Code:  8525500000
    Port: Dalian

Product Description

Professional 1KW Digital TV Transmitter



1KW Digital TV Transmitter
Module design
MCU controlled
RS485/232 interface
Professional performance
12.1-inch color LCD with touch panel
High reliability
low price



Overview:
This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.

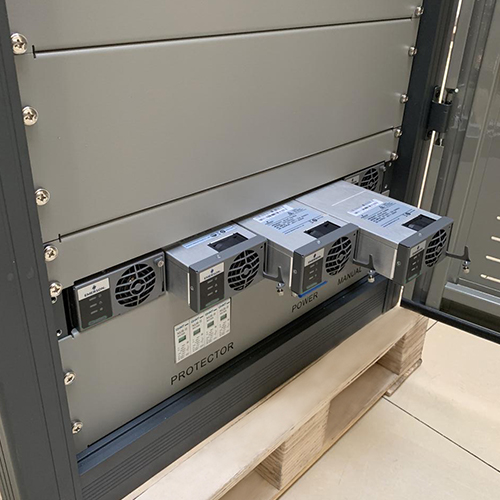

The power amplifier and Power Supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master Touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

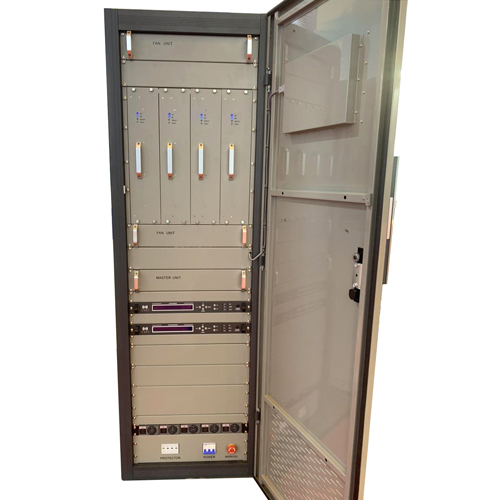

The 1000W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.



1KW Digital TV Transmitter
H24de8e1b00cd429bbc479cacb6720f50zH723b4dddc5184d0aa98df758c9135a8a4H4f82e34558544c18ac957f30423f6f31h

H34d535e6008a4844a5660b4b20840320i



Features:
Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel Switching Power Supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.




Quick Details

1. Working frequency: UHF 13-48 channel arbitrary choice
2. Output power: 1000W
3. Output impedance: 50Ω
4. Channel bandwidth: 8MHz
5. Output interface: 40
6. Output load return loss: Normal
7. operation: -32dB
8. Allowed operation: -20dB
9. Power input level: 0dBm
10. Amplifier input impedance: 50Ω
11.Amplifier input interface: L16
12. Useless transmission: ≤-60dB
13. Band fluctuations: ±0.5dB
14. Band shoulder: better than 36dB
15. MER: better than 30dB
16. Size: 1860mm×560mm×900
17. Weight: 150KG



FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
